IRF9530NPBF INFINEON/英飞凌 功率场效应管, MOSFET, P通道, 100 V, 13 A, 0.2 ohm, TO-220AB, 通孔

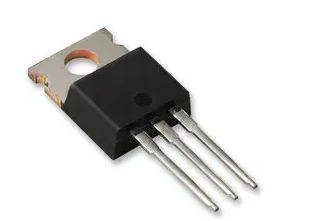

The IRF9530NPBF is -100V single P channel HEXFET power MOSFET in TO-220AB package. This MOSFET features extremely low on resistance per silicon area, dynamic dv/dt rating, rugged, fast switching and fully avalanche rated as a result, power MOSFET are well know to provide extremely efficiency and reliability which can be used in wide variety of applications.
- Drain to source voltage Vds is -100V
- Gate to source voltage is ±20V
- On resistance Rds(on) of 200mohm
- Power dissipation Pd of 79W at 25°C
- Continuous drain current Id of -14A at Vgs -10V and 25°C
- Operating junction temperature range from -55°C to 175°C
