制造商 | onsemi | |
制造商产品编号 | 2N7002ET1G | |
描述 | MOSFET N-CH 60V 260MA SOT23-3 | |
原厂标准交货期 | 39 Weeks | |
详细描述 | N-Channel 60 V 260mA (Ta) 300mW (Tj) Surface Mount SOT-23-3 (TO-236) | |
类别 | Discrete Semiconductor Products Transistors - FETs, MOSFETs - Single | |
Mfr | onsemi | |
Series | - | |
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Product Status | Active | |
FET Type | N-Channel | |
Technology | MOSFET (Metal Oxide) | |
Drain to Source Voltage (Vdss) | 60 V | |
Current - Continuous Drain (Id) @ 25°C | 260mA (Ta) | |
Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | |
Rds On (Max) @ Id, Vgs | 2.5Ohm @ 240mA, 10V | |
Vgs(th) (Max) @ Id | 2.5V @ 250µA | |
Gate Charge (Qg) (Max) @ Vgs | 0.81 nC @ 5 V | |
Vgs (Max) | ±20V | |
Input Capacitance (Ciss) (Max) @ Vds | 26.7 pF @ 25 V | |
FET Feature | - | |
Power Dissipation (Max) | 300mW (Tj) | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

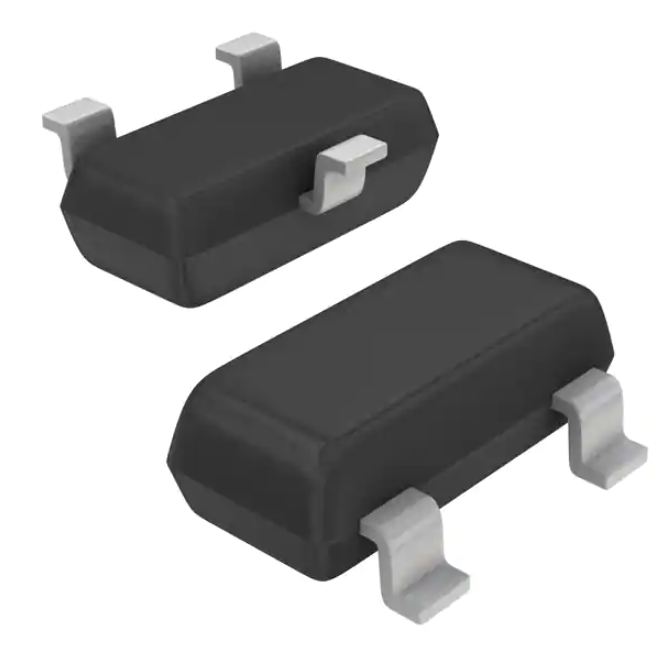

Supplier Device Package | SOT-23-3 (TO-236) | |
Package / Case | TO-236-3, SC-59, SOT-23-3 | |
Base Product Number | 2N7002 |
